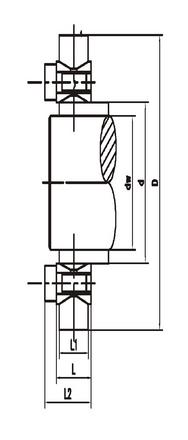

規格 | 基本尺寸 | 脹套與軸結合 面壓力Mpa | 脹套與轂結合面壓力Mpa | 鎖緊螺釘 | 重量約（KG) | ||
dxDxL | L1 | L2 | dw | 擰緊力矩（N.M） | |||
25x60x20 | 17 | 27.5 | 18 | 21 | 0.190 | 17 | 0.37 |
25x60x20 | 17 | 27.5 | 20 | 25 | 0.255 | 17 | 0.37 |
30x65x20 | 17 | 27.5 | 20 | 20 | 0.205 | 17 | 0.42 |
30x65x20 | 17 | 27.5 | 22 | 24 | 0.270 | 17 | 0.42 |
30x65x20 | 17 | 27.5 | 24 | 28 | 0.340 | 17 | 0.42 |
35x72x20 | 17 | 27.5 | 25 | 29 | 0.365 | 17 | 0.48 |
35x72x20 | 17 | 27.5 | 28 | 35 | 0.490 | 17 | 0.48 |
35x72x20 | 17 | 27.5 | 30 | 39 | 0.585 | 17 | 0.48 |
40x78x20 | 17 | 27.5 | 30 | 37 | 0.555 | 17 | 0.54 |
40x78x20 | 17 | 27.5 | 32 | 37 | 0.590 | 17 | 0.54 |
40x78x20 | 17 | 27.5 | 34 | 42 | 0.710 | 17 | 0.54 |
40x78x20 | 17 | 27.5 | 35 | 44 | 0.770 | 17 | 0.54 |
45x92x24 | 20 | 33.5 | 35 | 55 | 0.960 | 41 | 0.92 |
45x92x24 | 20 | 33.5 | 36 | 57 | 1.030 | 41 | 0.92 |
45x92x24 | 20 | 33.5 | 38 | 63 | 1.200 | 41 | 0.92 |
50x98x24 | 20 | 33.5 | 38 | 53 | 1.010 | 41 | 1.00 |
50x98x24 | 20 | 33.5 | 40 | 58 | 1.160 | 41 | 1.00 |
50x98x24 | 20 | 33.5 | 42 | 63 | 1.320 | 41 | 1.00 |
55x105x24 | 20 | 33.5 | 42 | 63 | 1.330 | 41 | 1.10 |
55x105x24 | 20 | 33.5 | 45 | 70 | 1.590 | 41 | 1.10 |
55x105x24 | 20 | 33.5 | 48 | 78 | 1.880 | 41 | 1.10 |
60x110x24 | 20 | 33.5 | 48 | 67 | 1.600 | 41 | 1.20 |
60x110x24 | 20 | 33.5 | 50 | 71 | 1.780 | 41 | 1.20 |
60x110x24 | 20 | 33.5 | 52 | 73 | 1.890 | 41 | 1.20 |
70x138x28 | 24 | 39.5 | 55 | 106 | 2.930 | 83 | 2.30 |
70x138x28 | 24 | 39.5 | 58 | 116 | 3.370 | 83 | 2.30 |
70x138x28 | 24 | 39.5 | 60 | 123 | 3.690 | 83 | 2.30 |
80x145x28 | 24 | 39.5 | 62 | 101 | 3.140 | 83 | 2.40 |
80x145x28 | 24 | 39.5 | 65 | 110 | 3.570 | 83 | 2.40 |
80x145x28 | 24 | 39.5 | 68 | 118 | 4.020 | 83 | 2.40 |
80x145x28 | 24 | 39.5 | 70 | 124 | 4.350 | 83 | 2.40 |
90x160x28 | 24 | 39.5 | 70 | 117 | 4.090 | 83 | 2.80 |
90x160x28 | 24 | 39.5 | 75 | 130 | 4.890 | 83 | 2.80 |
90x160x28 | 24 | 39.5 | 78 | 139 | 5.420 | 83 | 2.80 |
100x180x33 | 26 | 47.0 | 78 | 153 | 5.980 | 145 | 3.80 |
100x180x33 | 26 | 47.0 | 80 | 159 | 6.370 | 145 | 3.80 |
100x180x33 | 26 | 47.0 | 82 | 158 | 6.490 | 145 | 3.80 |
100x180x33 | 26 | 47.0 | 85 | 168 | 7.130 | 145 | 3.80 |
110x190x33 | 26 | 47.0 | 85 | 145 | 6.180 | 145 | 4.10 |
110x190x33 | 26 | 47.0 | 88 | 154 | 6.800 | 145 | 4.10 |
110x190x33 | 26 | 47.0 | 90 | 160 | 7.240 | 145 | 4.10 |
110x190x33 | 26 | 47.0 | 95 | 176 | 8.380 | 145 | 4.10 |
120x205x33 | 26 | 47.0 | 95 | 173 | 8.250 | 145 | 4.70 |
120x205x33 | 26 | 47.0 | 100 | 189 | 9.450 | 145 | 4.70 |
120x205x33 | 26 | 47.0 | 105 | 204 | 10.74 | 145 | 4.70 |
140x230x38 | 34 | 52.0 | 110 | 233 | 12.80 | 145 | 7.40 |
140x230x38 | 34 | 52.0 | 115 | 251 | 14.44 | 145 | 7.40 |
140x230x38 | 34 | 52.0 | 120 | 269 | 16.14 | 145 | 7.40 |
160x260x38 | 34 | 52.0 | 125 | 274 | 17.13 | 145 | 9.20 |
160x260x38 | 34 | 52.0 | 130 | 292 | 18.99 | 145 | 9.20 |
160x260x38 | 34 | 52.0 | 135 | 310 | 20.94 | 145 | 9.20 |
160x260x38 | 34 | 52.0 | 140 | 328 | 23.00 | 145 | 9.20 |
